1884530000 | Weidmüller

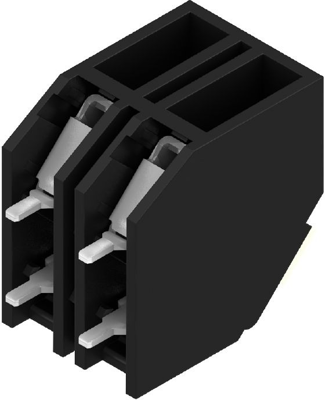

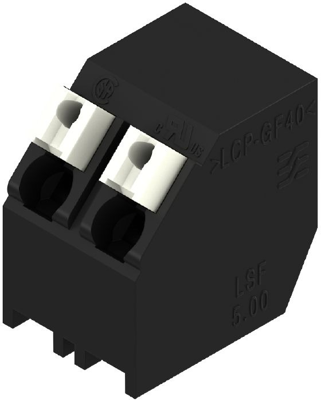

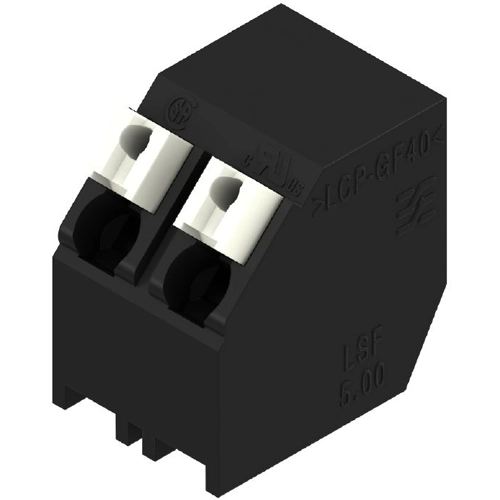

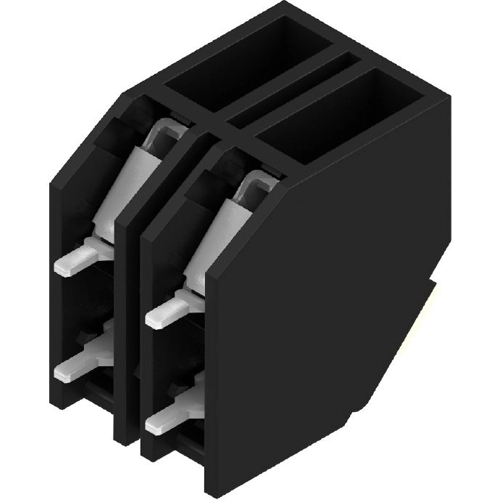

PCB terminal, 2 pole, pitch 5 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1884530000
Order No.: 52P4851
EAN: 4032248489121
MPN:
1884530000
LSF-SMT 5.00/02/135 1.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
0.6307 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
10 pcs.
0.5831 €
50 pcs.
0.5236 €
100 pcs.
0.4760 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1884530000, WEIDMÜLLER

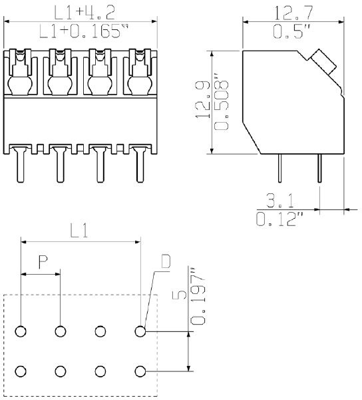

Printed circuit board terminals, 5.00 mm, number of poles: 2, 135°, Solder pin length: (l): 1.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 9.2 mm | |
| Farbe | schwarz | |
| Höhe | 14.4 mm | |
| Leiterquerschnitt | 0,13-1,5 mm² | |
| Nennspannung | 300 V | |
| Nennstrom | 12 A | |
| Polzahl | 2-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 12.7 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
