1885780000 | Weidmüller
PCB terminal, 15 pole, pitch 3.5 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1885780000
Order No.: 52P4954
EAN: 4032248490691
MPN:
1885780000
LSF-SMT 3.50/15/135 3.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
4.7124 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
4.71 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7124 €
10 pcs.
4.3316 €
50 pcs.
3.9508 €
100 pcs.
3.5462 €
*incl. VAT plus shipping costs
**Subject to prior sale

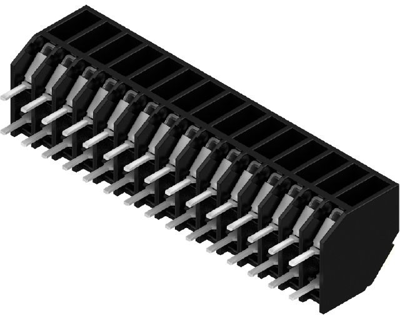

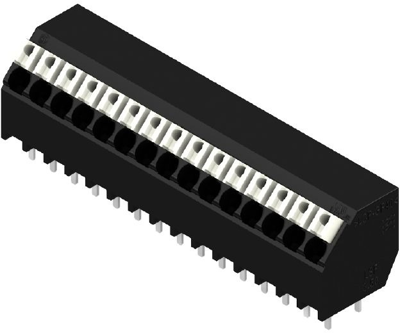

PCB terminal, 1885780000, WEIDMÜLLER

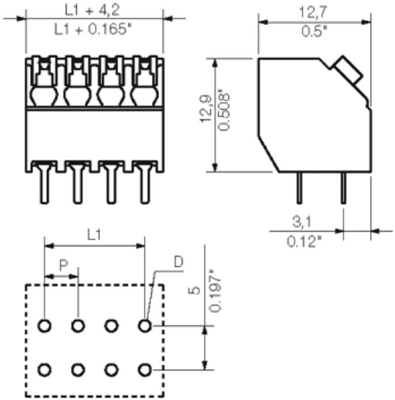

Printed circuit board terminals, 3.50 mm, number of poles: 15, 135°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 28-14 | |
| Width | 53.2 mm | |
| Colour | black | |
| Height | 16.4 mm | |
| Cable cross-section | 0.13-1.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 12 A | |
| Pin number | 15 pole | |
| Grid | 3.5 mm | |
| Depth | 12.7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
