1885920000 | Weidmüller
PCB terminal, 6 pole, pitch 3.81 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1885920000
Order No.: 09H1566
EAN: 4032248490837
MPN:
1885920000
LSF-SMT 3.81/06/135 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
1.8564 € *
Available: 0 pcs.
Available in 6 Days: 115 pcs.
Leadtime: On Request **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8564 €
10 pcs.
1.7255 €
50 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale

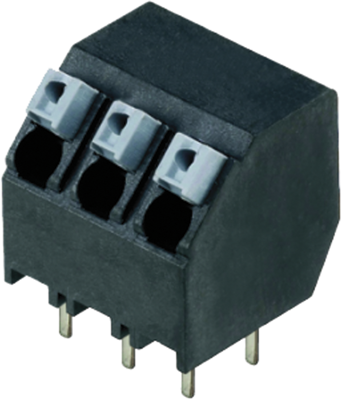

PCB terminal, 1885920000, WEIDMÜLLER
Printed circuit board terminals, 3.81 mm, number of poles: 6, 135°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

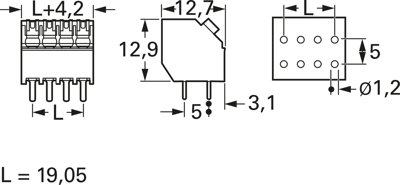

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 23.25 mm | |
| Farbe | schwarz | |
| Höhe | 16.4 mm | |
| Leiterquerschnitt | 0,13-1,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 10 A | |
| Polzahl | 6-polig | |
| Rastermaß | 3.81 mm | |
| Tiefe | 12.7 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Stange mit 23 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
