1912330000 | Weidmüller

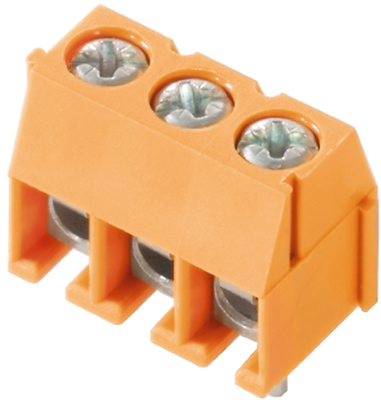

PCB terminal, 3 pole, pitch 3.5 mm, AWG 28-16, 10 A, screw connection, orange, 1912330000
Unit Price (€ / pc.)
0.5950 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: 8 Weeks **
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
10 pcs.
0.5474 €
50 pcs.
0.4998 €
100 pcs.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1912330000, Weidmüller
PCB terminal, 3.50 mm, no. of poles: 3, 90°, 3.5 mm, orange, PUSH IN, 1.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

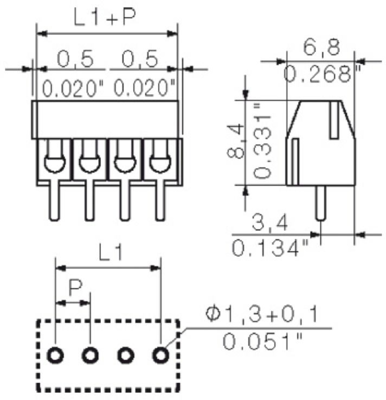

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 28-16 | |
| Width | 10.96 mm | |
| Colour | orange | |
| Height | 11.9 mm | |
| Cable cross-section | 0.08-1.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 3 pole | |
| Grid | 3.5 mm | |
| Depth | 6.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
