1926350000 | Weidmüller

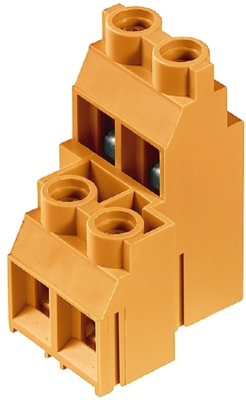

PCB terminal, 4 pole, pitch 9.52 mm, AWG 26-10, 30 A, screw connection, orange, 1926350000
Order No.: 52P6245
EAN: 4032248660186
MPN:
1926350000
LL2N 9.52/04/90 5.0SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
3.5700 € *
Available: 0 pcs.
Available in 6 Days: 20 pcs.
Leadtime: On Request **
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5700 €
10 pcs.
3.2844 €
50 pcs.
2.9869 €
100 pcs.
2.6894 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1926350000, Weidmüller
PCB terminal, 9.52 mm, number of poles: 4, 90°, 5 mm, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

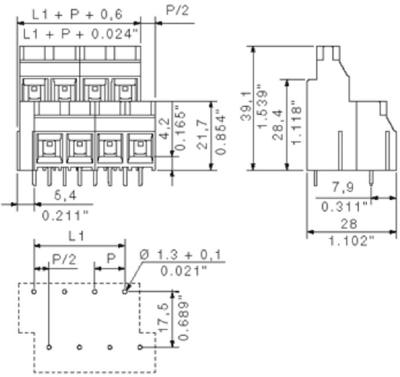

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-10 | |
| Width | 19.64 mm | |
| Colour | orange | |
| Height | 33.9 mm | |
| Cable cross-section | 0.18-6.0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 30 A | |
| Pin number | 4 pole | |
| Grid | 9.52 mm | |
| Depth | 28 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
