1953050000 | Weidmüller
PCB terminal, 6 pole, pitch 7.5 mm, AWG 26-14, 15 A, spring-clamp connection, orange, 1953050000
Order No.: 52P7727
EAN: 4032248663385
MPN:
1953050000
LMZFL 7/6/135 3.5OR
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
1.8445 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.7136 €
50 pcs.
1.5470 €
*incl. VAT plus shipping costs
**Subject to prior sale

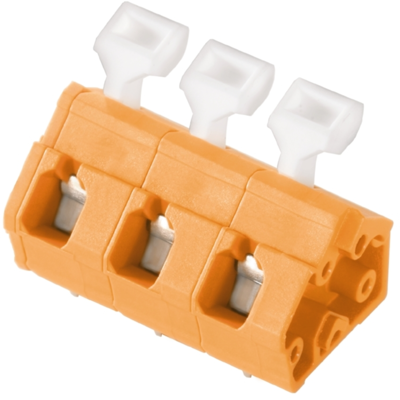

Print clamp, 1953050000, Weidmüller
PCB terminal, 7.50 mm, no. of poles: 6, 135°, 3.5 mm, orange, tension clamp connection with actuating element, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 26-14 | |
| Width | 17.38 mm | |
| Colour | orange | |
| Height | 16.74 mm | |
| Cable cross-section | 0.13-2.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 6 pole | |
| Grid | 7.5 mm | |
| Depth | 14.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
