1954020000 | Weidmüller
PCB terminal, 11 pole, pitch 10 mm, AWG 26-14, 15 A, spring-clamp connection, orange, 1954020000
Order No.: 52P7765
EAN: 4032248662708
MPN:
1954020000
LMZFL 10/11/135 3.5OR
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
2.6061 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

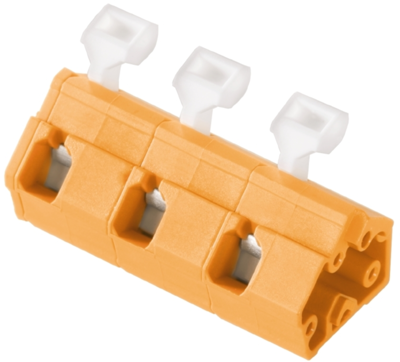

Print clamp, 1954020000, Weidmüller
PCB terminal, 10.00 mm, no. of poles: 11, 135°, 3.5 mm, orange, tension clamp connection with actuating element, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

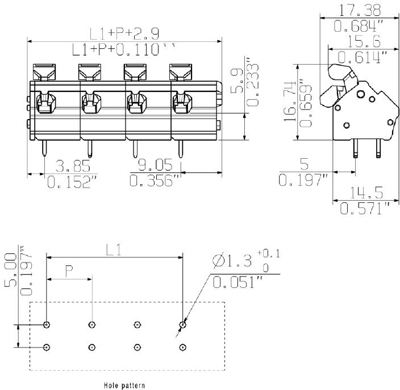

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 26-14 | |
| Width | 112.9 mm | |
| Colour | orange | |
| Height | 20.24 mm | |
| Cable cross-section | 0.13-2.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 11 pole | |
| Grid | 10 mm | |
| Depth | 15.6 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
