1975260000 | Weidmüller

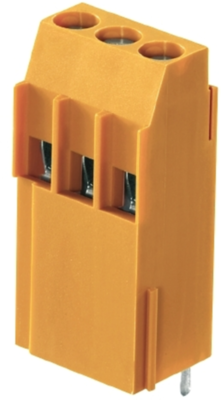

PCB terminal, 3 pole, pitch 5 mm, AWG 26-12, 20 A, screw connection, orange, 1975260000
Order No.: 52P8554
EAN: 4032248672288
MPN:
1975260000
LL1N 5.00/03/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
2.3919 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: 1 Week **
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3919 €
10 pcs.
2.2134 €
50 pcs.
1.9992 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1975260000, Weidmüller

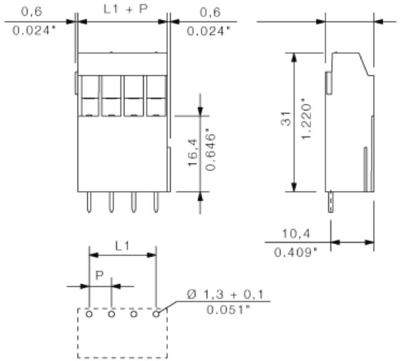

PCB terminal, 5.00 mm, no. of poles: 3, 90°, 3.2 mm, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-12 | |
| Width | 15.64 mm | |
| Colour | orange | |
| Height | 34.3 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 3 pole | |
| Grid | 5 mm | |
| Depth | 10.84 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
