1975400000 | Weidmüller
PCB terminal, 6 pole, pitch 5.08 mm, AWG 26-12, 20 A, screw connection, orange, 1975400000
Order No.: 52P8568
EAN: 4032248672622
MPN:
1975400000
LL1N 5.08/06/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
4.8076 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8076 €
10 pcs.
4.4268 €
50 pcs.
4.0341 €
100 pcs.
3.6295 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1975400000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 6, 90°, 3.2 mm, orange, clamping yoke connection, 6 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

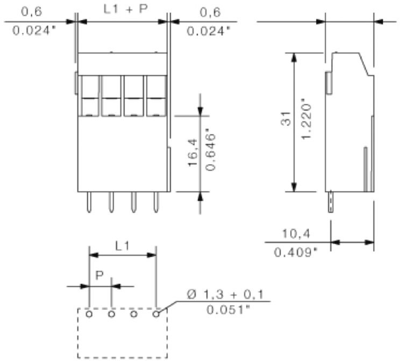

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-12 | |
| Width | 31.12 mm | |
| Colour | orange | |
| Height | 34.3 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 6 pole | |
| Grid | 5.08 mm | |
| Depth | 10.84 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
