2429530000 | Weidmüller

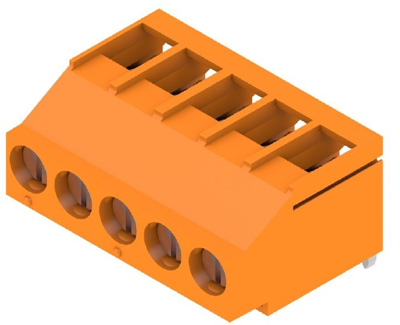

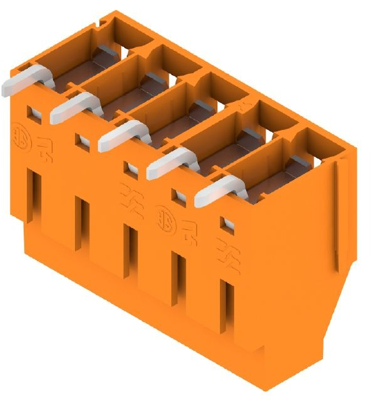

PCB terminal, 5 pole, pitch 5 mm, AWG 26-12, 20 A, screw connection, orange, 2429530000
Order No.: 53P1087
EAN: 4050118438772
MPN:
2429530000
LL 5.00/05/180 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
2.8679 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
2.87 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8679 €
10 pcs.
2.6656 €
50 pcs.
2.4038 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 2429530000, Weidmüller
PCB terminal, 5.00 mm, no. of poles: 5, 180°, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-12 | |
| Width | 10.65 mm | |
| Colour | orange | |
| Height | 14.2 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Depth | 17.1 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
