9511840000 | Weidmüller

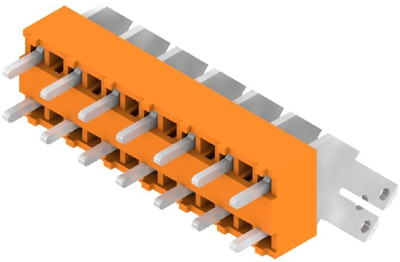

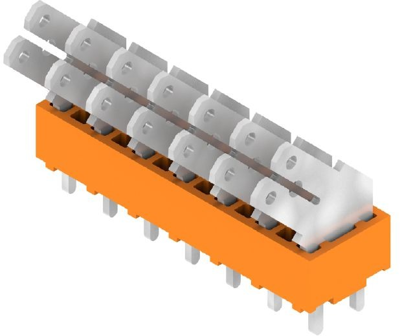

PCB terminal, 7 pole, pitch 5 mm, AWG 24-14, 15 A, faston plug, orange, 9511840000
Unit Price (€ / pc.)
2.9988 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
10 pcs.
2.7489 €
50 pcs.
2.5109 €
100 pcs.
2.2610 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 9511840000, Weidmüller
PCB terminal, 5.00 mm, no. of poles: 7, 135°, 3.5 mm, orange, tab connection, box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

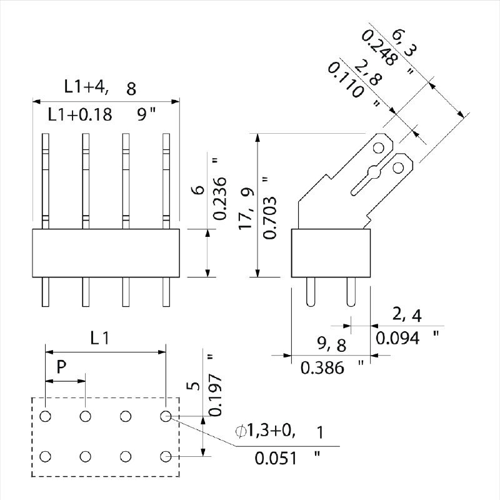

Technical specifications
| Connection | faston plug | |
| AWG cross-section | AWG 24-14 | |
| Width | 34.8 mm | |
| Colour | orange | |
| Height | 21.4 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Rated voltage | 150 V | |
| Rated current | 15 A | |
| Pin number | 7 pole | |
| Grid | 5 mm | |
| Depth | 9.8 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
