1027660000 | Weidmüller
Connector kit, size 3, 6 pole + PE , IP65, 1027660000
Unit Price (€ / pc.)
42.3402 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
42.34 € *
Price list
Quantity
Price per unit*
1 pcs.
42.3402 €
10 pcs.
40.2220 €
25 pcs.
37.8182 €
50 pcs.
35.5453 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector Kit, 1027660000, WEIDMÜLLER

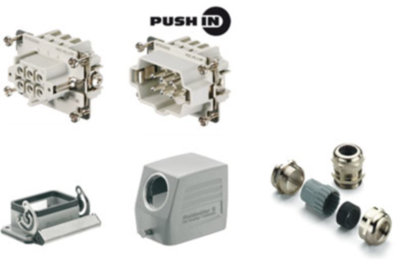

The 1027660000 is a standardized kit for assembling complete plug-in connectors. The HDC kit normally consist of a male insert, a female insert, a plug housing, a bulkhead housing and a cable gland. The PUSH IN connection is a direct-insert method of connection. The preprocessed wire can be inserted directly into the wire connection without the need for any tools.
Technical specifications
| Version | connector kit | |
| Shell size | 3 | |
| Shell Material | die-cast aluminum | |
| Cable Outlet | PG16, angled | |
| Contact connection | push-in | |
| PE contact | Yes | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP65 | |
| Type of locking | push pull |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
