1009160800 | Weidmüller

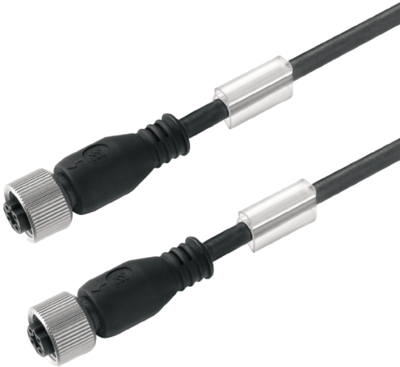

Sensor actuator cable, M12-cable socket, straight to M12-cable socket, straight, 3 pole, 8 m, PUR, black, 4 A, 1009160800
Order No.: 50P2354
EAN: 4032248713127
MPN:
1009160800
SAIL-M12BGM12G-3-8.0U
Unit Price (€ / pc.)
48.7781 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Sensor/actuator cable, 1009160800, Weidmüller
Sensor/actuator cable (Assembled), Connecting cable, M12 / M12, 3, 8 m, Female, Straight-Female, Straight, Shielded: No, LED: No, Halogens: No
The Sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable provides a factory connected and tested connector to cable connection.
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | M12-cable socket, straight | |
| Colour | black | |
| Cable length | 8 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
