1292390000 | Weidmüller
Sensor actuator cable, 7/8"-flange socket, straight to open end, 3 pole, 0.2 m, PUR, 10 A, 1292390000
Order No.: 51P0598
EAN: 4050118088519
MPN:
1292390000
SAIE-7/8B-3-0.2U-H
Unit Price (€ / pc.)
37.485 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Circular connector, 1292390000, Weidmüller

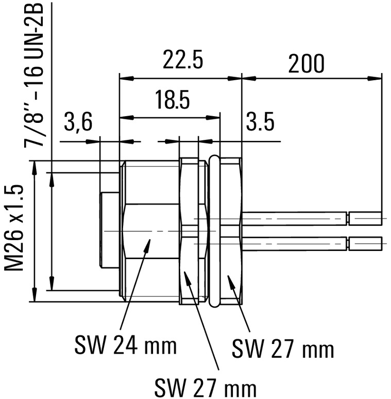

Circular connector, Flush mounting (with cable), Female, 7/8", Number of positions: 3, 0.2 m, Gland: 7/8", 0.75 mm², PUR/ PUR
Circular connector for flush mounting with cable connected.
Technical specifications
| Connection (1) | 7/8"-Flanschbuchse, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.2 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
