1906480020 | Weidmüller

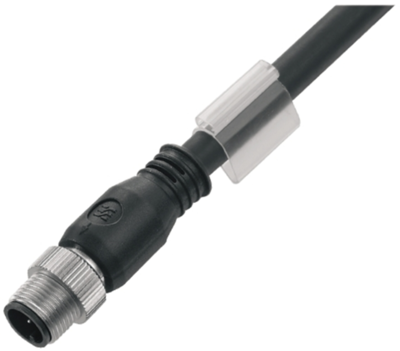

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 0.2 m, PUR, black, 4 A, 1906480020
Order No.: 52P5563
EAN: 4050118292992
MPN:
1906480020
SAIL-M12G-4S0.2U
Unit Price (€ / pc.)
51.3128 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Sensor/actuator cable, 1906480020, Weidmüller
Sensor/actuator cable (Assembled), Open at one end, M12, 4, 0.2 m, Male, Straight, Shielded: Yes, LED: No, Halogens: No, PUR, Black
The Sensor/actuator cable is used for wiring sensors and actuators and transmitting data. The molded cable provides a factory connected and tested connector to cable connection.
Technical specifications
| Connection (1) | M12-Kabelstecker, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 4-polig | |
| Cable length | 0.2 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
