9457740060 | Weidmüller

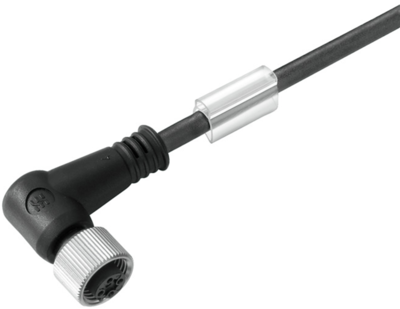

Sensor actuator cable, M12-cable socket, angled to open end, 4 pole, 0.6 m, PUR, black, 4 A, 9457740060
Order No.: 53P6914
EAN: 4032248228324
MPN:
9457740060
SAIL-M12BW-4-0.6U
Unit Price (€ / pc.)
19.2304 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Sensor/actuator cable, 9457740060, Weidmüller
Sensor/actuator cable (Assembled), Open at one end, M12, 4, 0.6 m, Female, Angled, Shielded: No, LED: No, Halogens: No, PUR, Black
The Sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable provides a factory connected and tested connector to cable connection.
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 4-polig | |
| Kabellänge | 0.6 m | |
| Farbe | schwarz | |
| Material | PUR | |
| Schutzart (IP) | IP65/IP66/IP67/IP68 | |
| LED-Anzeige | No | |
| max. Spannung | 250 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
