9457790100 | Weidmüller

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 3 pole, 1 m, PUR, black, 4 A, 9457790100

Order No.: 53P6972
EAN: 4032248481309
MPN:
9457790100
SAIL-M12GM12W-3L1.0U

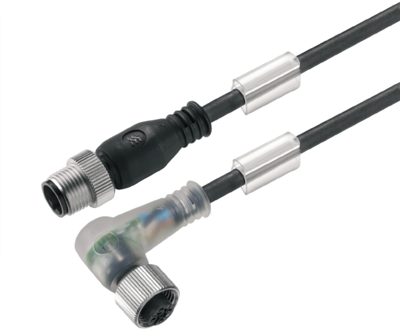

9457790100 Weidmüller Sensor-Actuator Cables Image 1
9457790100 Weidmüller Sensor-Actuator Cables Image 2
9457790100 Weidmüller Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
42.5068 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
42.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
42.5068 €

Sensor/actuator cable, 9457790100, Weidmüller

Sensor/actuator cable (Assembled), Connecting cable, M12 / M12, 3, 1 m, Male, Straight-female, Angled, Shielded: No, LED: Yes, Halogens: No

The Sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable provides a factory connected and tested connector to cable connection.

Technical specifications
Connection (1) M12-Kabelstecker, gerade
Connection (2) M12-Kabeldose, abgewinkelt
Pin number 3-polig
Cable length 1 m
Colour schwarz
Material PUR
Degree of protection (IP) IP65/IP66/IP67/IP68
LED display Yes
max. Voltage 24 V
Rated current 4 A
Logistics
Country of origin RO
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
