9457910200 | Weidmüller
Sensor actuator cable, M12-cable socket, straight to open end, 5 pole, 2 m, PUR, black, 4 A, 9457910200
Order No.: 53P7051
EAN: 4032248228836
MPN:
9457910200
SAIL-M12BG-5-2.0U
Unit Price (€ / pc.)
26.7155 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

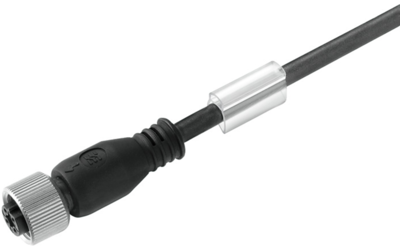

Sensor/actuator cable, 9457910200, Weidmüller
Sensor/actuator cable (Assembled), Open Ended, M12, 5, 2 m, Female, Straight, Shielded: No, LED: No, Halogens: No, PUR, Black
The Sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable provides a factory connected and tested connector to cable connection.
Technical specifications
| Anschluss (1) | M12-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 2 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 125 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP65/IP66/IP67/IP68 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
