1224660000 | Weidmüller
Weidmueller SAI-M23-BE-17-F-G
Unit Price (€ / pc.)
20.5751 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
20.58 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5751 €
10 pcs.
18.9329 €
50 pcs.
17.4097 €
100 pcs.
15.8508 €
*incl. VAT plus shipping costs
**Subject to prior sale

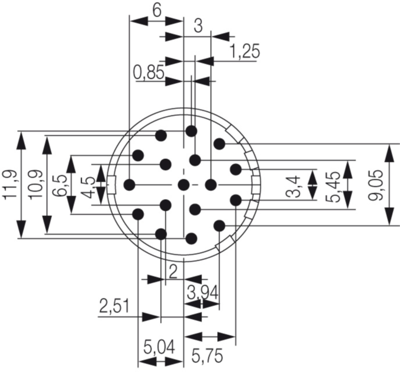

Sensor-actuator connector, 1224660000, WEIDMÜLLER
The 1224660000 is a round plug-in connector that offers a high number of mating cycles, high current-carrying capacity and high contact-density coupled with minimum dimensions.
Features
- Contact surface: Gold-plated
- 17 contacts
- Pollution degree: 3
- High mating cycles
Technical specifications
| Version | socket | |
| Thread size | M23 | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Pin number | 17 pole | |
| Degree of protection (IP) | IP67/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
