0210060000 | Weidmüller
Multi level terminal block, screw connection, 0.5-4.0 mm², 5 mA, 1 kV, beige/yellow, 0210060000
Unit Price (€ / pc.)
14.3633 € *
Available: 0 pcs.
Leadtime: 1 Week **

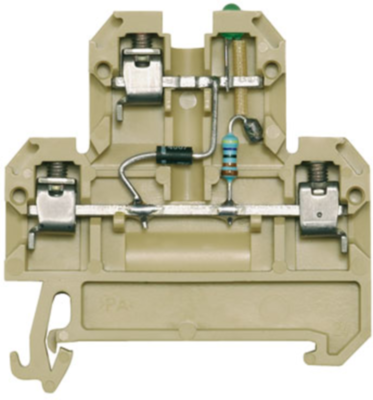

Double-tier terminal, 0210060000, Weidmüller
Double-tier terminal block, screw connection, 4 mm², 24 V, number of levels: 2, beige/yellow.
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Mehrstock-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 24 V | |
| Bemessungsstoßspannung | 1 kV | |
| Breite | 6 mm | |
| Farbe | beige/gelb | |
| Höhe | 50 mm | |
| Länge | 52.5 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 5 mA | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
