0271060000 | Weidmüller

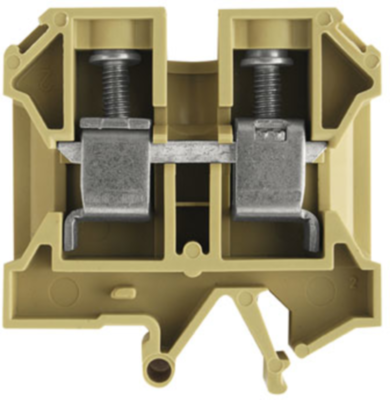

Through terminal block, screw connection, 4.0-16 mm², 2 pole, 76 A, 8 kV, beige/yellow, 0271060000
Unit Price (€ / pc.)
4.4863 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Feed-through terminal, 0271060000, Weidmüller
Feed-through modular terminal block, screw connection, 16 mm², 1000 V, 76 A, number of connections: 2, TS 32, beige/yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 12 bis 6 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 12 mm | |
| Farbe | beige/gelb | |
| Höhe | 50 mm | |
| Länge | 57.5 mm | |
| Leiterquerschnitt | 4,0-16 mm² | |
| Nennstrom | 76 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
