0324020000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-10 mm², 26 A, 6 kV, blue, 0324020000

Order No.: 50P0873
EAN: 4008190055523
MPN:
0324020000
SAKC 10 STB/RE
Series: SAK-Reihe
0324020000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
17.6596 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
17.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.6596 €

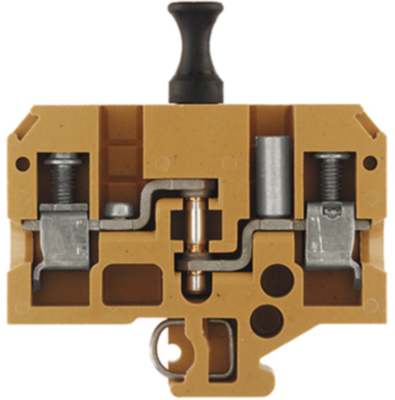

Test-disconnect terminal, 0324020000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 10 mm², 400 V, 26 A, pluggable, cross disconnection: none, integrated test socket: yes, TS 32, medium yellow.

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Trenn-/Messtrenn Reihenklemme
AWG-Leiterquerschnitt AWG 22 bis 8
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 12 mm
Farbe blau
Höhe 65 mm
Länge 52.5 mm
Leiterquerschnitt 0,5-10 mm²
Nennstrom 26 A
Verschmutzungsgrad 3
Logistics
Ursprungsland HU
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
