0340460000 | Weidmüller

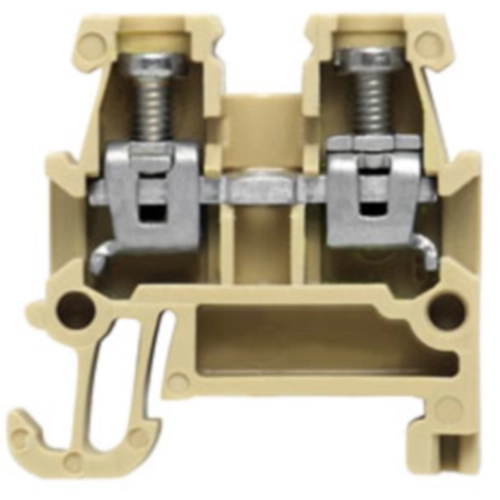

Through terminal block, screw connection, 0.5-1.5 mm², 2 pole, 17.5 A, 4 kV, beige/yellow, 0340460000

Order No.: 50P0937
EAN: 4008190091576
MPN:
0340460000
AKZ 1.5
Series: SAK-Reihe
0340460000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
2.1777 € *
Available: 0 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
2.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.1777 €

Feed-through terminal, 0340460000, Weidmüller

Feed-through terminal block, screw connection, 1.5 mm², 250 V, 17.5 A, number of connections: 2, TS 15, beige/yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Version Durchgangsklemme
Number of terminals 2
Pin number 2-polig
Cable cross-section 0,5-1,5 mm²
AWG cross-section AWG 24 bis 14
Rated surge voltage 4 kV
Rated current 17.5 A
Rated Voltage 250 V
Degree of soiling 3
Length 24 mm
Width 5.1 mm
Height 24.8 mm
Connection Schraubanschluss
Colour beige/gelb
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
