0467460000 | Weidmüller

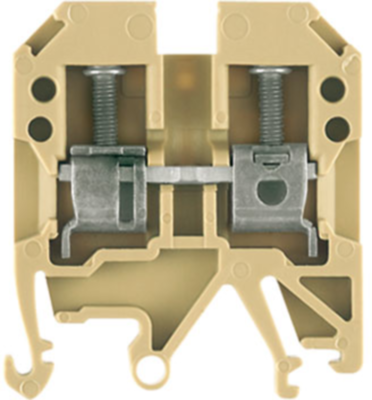

Through terminal block, screw connection, 0.5-4.0 mm², 2 pole, 32 A, 8 kV, beige/yellow, 0467460000
Order No.: 50P1215
EAN: 4008190002749
MPN:
0467460000
SAK 4/EN
As an alternative, we recommend the following item:

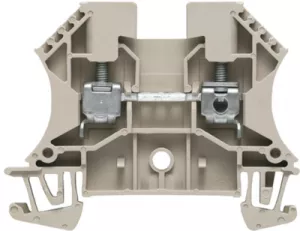

Through terminal block, screw connection, 0.5-4.0 mm², 2 pole, 32 A, 8 kV, dark beige, 1020100000
Order No.: 50P2793
Manufacturer: Weidmüller
per pc. 1.7374 € *
*incl. VAT plus shipping costs
Feed-through terminal, 0467460000, Weidmüller
Feed-through modular terminal block, screw connection, 4 mm², 800 V, 32 A, number of connections: 2, TS 35, TS 32, beige/yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 26 to 10 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 6.5 mm | |
| Colour | beige/yellow | |
| Height | 42 mm | |
| Length | 47.5 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated current | 32 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
