0590160000 | Weidmüller

Multi level terminal block, screw connection, 0.5-4.0 mm², 32 A, 6 kV, beige/yellow, 0590160000

Order No.: 50P1680
EAN: 4008190103521
MPN:
0590160000
DK 4Q/35
Series: SAK-Reihe
0590160000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
9.5081 € *
Available: 0 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
9.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.5081 €

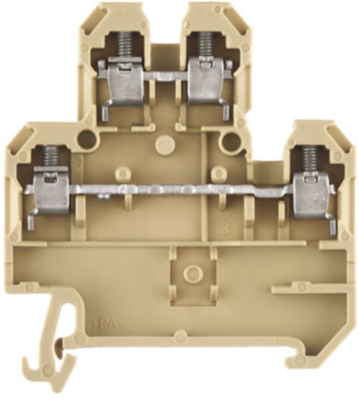

Double-tier terminal, 0590160000, Weidmüller

Double-tier terminal block, screw connection, 4 mm², 500 V, 32 A, number of levels: 2, beige/yellow.

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 4
Ausführung Mehrstock-Reihenklemme
AWG-Leiterquerschnitt AWG 22 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6 mm
Farbe beige/gelb
Höhe 54 mm
Länge 59.9 mm
Leiterquerschnitt 0,5-4,0 mm²
Nennstrom 32 A
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
