0637120000 | Weidmüller

Through terminal block, screw connection, 10-70 mm², 1 pole, 150 A, 8 kV, yellow, 0637120000

Order No.: 50P1740
EAN: 4008190111496
MPN:
0637120000
SAKG 32/35 I
Series: SAK-Reihe
0637120000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
25.1685 € *
Available: 0 pcs.
Available in 5 Days: 10 pcs.
Leadtime: 8 Weeks **
Total Price:
201.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
8 pcs.
25.1685 €

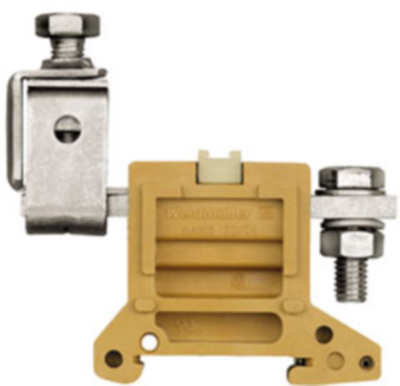

Feed-through terminal, 0637120000, Weidmüller

Feed-through modular terminal block, screw connection, 50 mm², 1000 V, 150 A, number of connections: 1, TS 35, medium yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 1
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 2/0 bis 3
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 32 mm
Farbe gelb
Höhe 87 mm
Länge 84.5 mm
Leiterquerschnitt 10-70 mm²
Nennstrom 150 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland HU
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
