0638020000 | Weidmüller

Through terminal block, screw connection, 10-16 mm², 2 pole, 309 A, 8 kV, yellow, 0638020000

Order No.: 50P1746
EAN: 4008190008161
MPN:
0638020000
SAKG 46/35 II/GW
Series: SAK-Reihe
0638020000 Weidmüller Series Terminals

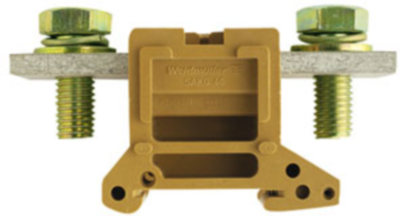

Image may differ
Unit Price (€ / pc.)
64.6765 € *
Available: 0 pcs.
Available in 6 Days: 25 pcs.
Leadtime: On Request **
Total Price:
64.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
64.6765 €

Feed-through terminal, 0638020000, Weidmüller

Feed-through modular terminal block, screw connection, 150 mm², 1000 V, 309 A, number of connections: 2, TS 35, medium yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 4/0
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 46 mm
Farbe gelb
Höhe 106 mm
Länge 57 mm
Leiterquerschnitt 10-16 mm²
Nennstrom 309 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland HU
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
