0638120000 | Weidmüller
Through terminal block, screw connection, 70-240 mm², 1 pole, 415 A, 8 kV, yellow, 0638120000
Unit Price (€ / pc.)
90.1068 € *
Available: 0 pcs.
Available in 6 Days: 25 pcs.
Leadtime: On Request **

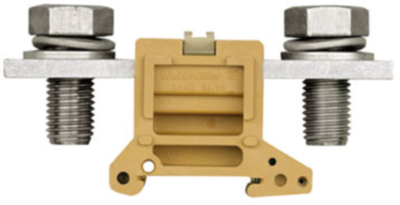

Feed-through terminal, 0638120000, Weidmüller
Feed-through modular terminal block, screw connection, 240 mm², 1000 V, 415 A, number of connections: 1, TS 35, medium yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | Durchgangsklemme | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 54 mm | |
| Farbe | gelb | |
| Höhe | 122 mm | |
| Länge | 60.5 mm | |
| Leiterquerschnitt | 70-240 mm² | |
| Nennstrom | 415 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
