0664960000 | Weidmüller

Through terminal block, screw connection, 0.5-4.0 mm², 1 pole, 20 A, 6 kV, beige/yellow, 0664960000

Order No.: 50P1906
EAN: 4008190043322
MPN:
0664960000
AST 5/35 SF 6.3/2.8
Series: SAK-Reihe
0664960000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
3.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.7009 €

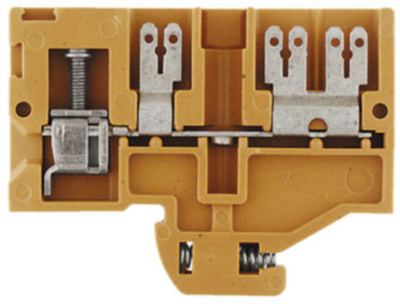

Feed-through terminal, 0664960000, Weidmüller

Feed-through modular terminal block, screw connection, 4 mm², 500 V, 20 A, number of connections: 1, TS 35, beige/yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 1
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.5 mm
Farbe beige/gelb
Höhe 58 mm
Länge 46 mm
Leiterquerschnitt 0,5-4,0 mm²
Nennstrom 20 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland RO
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
