0697180000 | Weidmüller
Through terminal block, screw connection, 0.5-2.5 mm², 2 pole, 24 A, 4 kV, blue, 0697180000
Unit Price (€ / pc.)
2.4157 € *
Available: 0 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
2.42 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4157 €
10 pcs.
2.2610 €
50 pcs.
2.0111 €
*incl. VAT plus shipping costs
**Subject to prior sale

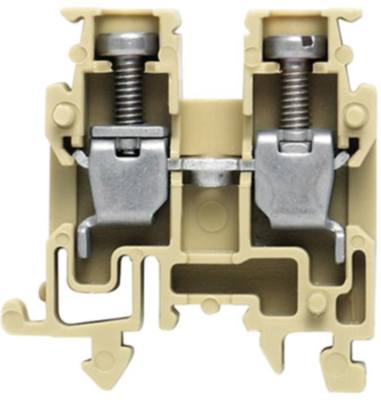

Feed-through terminal, 0697180000, Weidmüller
Feed-through terminal block, screw connection, 2.5 mm², 250 V, 24 A, number of connections: 2, TS 15, blue
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Version | Durchgangsklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,5-2,5 mm² | |
| AWG cross-section | AWG 26 bis 10 | |
| Rated surge voltage | 4 kV | |
| Rated current | 24 A | |
| Rated Voltage | 250 V | |
| Degree of soiling | 3 | |
| Length | 26.3 mm | |
| Width | 5.1 mm | |
| Height | 25.5 mm | |
| Connection | Schraubanschluss | |
| Colour | blau |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
