1010500000 | Weidmüller
Protective conductor terminal, screw connection, 2.5-35 mm², 2 pole, 4200 A, 8 kV, yellow/green, 1010500000
Unit Price (€ / pc.)
7.9016 € *
Available: 0 pcs.
Available in 6 Days: 125 pcs.
Leadtime: 1 Week **

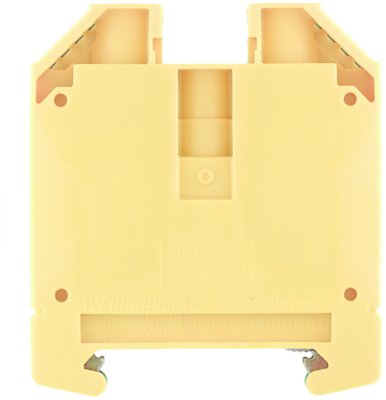

Protective conductor terminal block, 1010500000, Weidmüller
Protective conductor terminal block, screw connection, 35 mm², 800 V, number of connections: 2, number of levels: 1, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 12 bis 2 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 16 mm | |
| Farbe | gelb/grün | |
| Höhe | 56 mm | |
| Länge | 62.5 mm | |
| Leiterquerschnitt | 2,5-35 mm² | |
| Nennstrom | 4200 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
