1010780000 | Weidmüller
Disconnect/test-disconnect terminal block, Busbar connection, 0.5-6.0 mm², 32 A, 6 kV, blue, 1010780000
Unit Price (€ / pc.)
2.4157 € *
Available: 0 pcs.
Available in 6 Days: 50,000 pcs.
Leadtime: On Request **

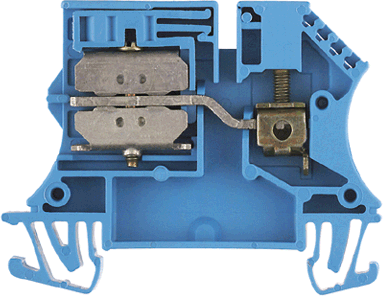

Test-disconnect terminal, 1010780000, Weidmüller
Disconnect and measuring isolate terminal block, busbar connection, 4 mm², 400 V, 32 A, sliding, cross disconnection: none, TS 35, blue
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Connection | Busbar connection | |
| Version | disconnect/test-disconnect terminal block | |
| AWG cross-section | AWG 26 to 10 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 6.1 mm | |
| Colour | blue | |
| Height | 60 mm | |
| Length | 46.5 mm | |
| Cable cross-section | 0.5-6.0 mm² | |
| Rated current | 32 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
