1015800000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 0.5-1.5 mm², 10 A, 4 kV, dark beige, 1015800000
Unit Price (€ / pc.)
8.7108 € *
Available: 0 pcs.
Available in 6 Days: 125 pcs.
Leadtime: On Request **

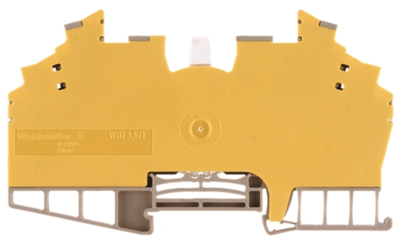

Test-disconnect terminal, 1015800000, Weidmüller
Disconnect and test-disconnect terminal block, screw connection, 1.5 mm², 250 V, 10 A, swiveling, cross-disconnect: without, integrated test socket: Yes, TS 32, TS 35.
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trenn-/Messtrenn Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 14 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 6.4 mm | |
| Farbe | dunkelbeige | |
| Höhe | 112 mm | |
| Länge | 66 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennstrom | 10 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
