1019000000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 1.5-16 mm², 76 A, 6 kV, blue, 1019000000
Unit Price (€ / pc.)
4.7957 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

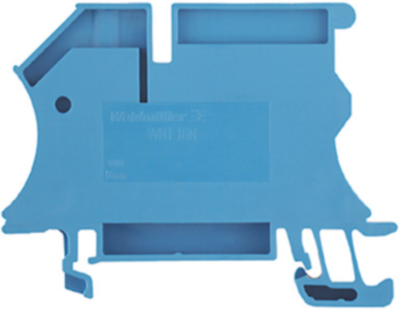

Test-disconnect terminal, 1019000000, Weidmüller
disconnect and measuring isolate terminal block, busbar connection, 16 mm², 400 V, 76 A, sliding, cross disconnection: none, TS 35, blue
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | Trenn-/Messtrenn Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 14 bis 6 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 12 mm | |
| Farbe | blau | |
| Höhe | 60 mm | |
| Länge | 46.5 mm | |
| Leiterquerschnitt | 1,5-16 mm² | |
| Nennstrom | 76 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
