1020510000 | Weidmüller

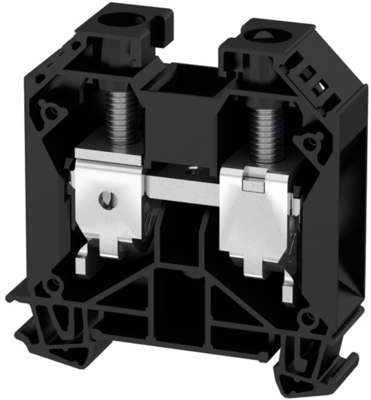

Through terminal block, screw connection, 2.5-35 mm², 2 pole, 125 A, 8 kV, black, 1020510000
Unit Price (€ / pc.)
5.5573 € *
Available: 0 pcs.
Leadtime: 1 Week **
Feed-through terminal, 1020510000, Weidmüller
Feed-through modular terminal block, screw connection, 35 mm², 1000 V, 125 A, number of connections: 2, TS 35, black
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 12 bis 2 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 16 mm | |
| Farbe | schwarz | |
| Höhe | 60 mm | |
| Länge | 62.5 mm | |
| Leiterquerschnitt | 2,5-35 mm² | |
| Nennstrom | 125 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
