1021900000 | Weidmüller

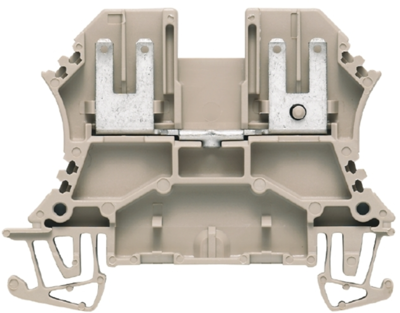

Through terminal block, plug-in connection, 1.0 mm², 4 pole, 12 A, 6 kV, dark beige, 1021900000
Unit Price (€ / pc.)
2.1777 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2.18 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1777 €
10 pcs.
2.0349 €
50 pcs.
1.8088 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 1021900000, Weidmüller
Feed-through modular terminal block, blade terminal, 1 mm², 500 V, 12 A, number of connections: 4, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | plug-in connection | |
| Number of terminals | 4 | |
| Version | through terminal block | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.1 mm | |
| Colour | dark beige | |
| Height | 60 mm | |
| Length | 46.25 mm | |
| Cable cross-section | 1.0 mm² | |
| Rated current | 12 A | |
| Pin number | 4 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
