1024680000 | Weidmüller
Through terminal block, screw connection, 16-95 mm², 2 pole, 232 A, 8 kV, blue, 1024680000
Unit Price (€ / pc.)
25.4541 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **

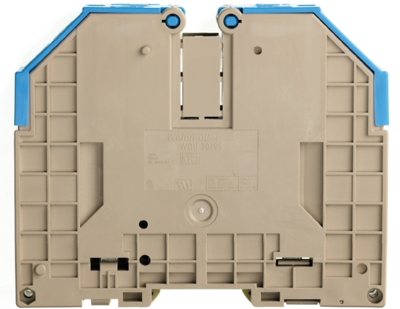

Feed-through terminal, 1024680000, Weidmüller
Feed-through terminal block, screw connection, 95 mm², 1000 V, 232 A, number of connections: 2, TS 35, blue
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 6 to 2/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 27 mm | |
| Colour | blue | |
| Height | 132 mm | |
| Length | 107 mm | |
| Cable cross-section | 16-95 mm² | |
| Rated current | 232 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
