1038500000 | Weidmüller
Multi level terminal block, screw connection, 0.5-4.0 mm², 18.5 A, 5 kV, dark beige, 1038500000
Unit Price (€ / pc.)
4.4982 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
4.50 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4982 €
10 pcs.
4.1412 €
50 pcs.
3.7723 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale

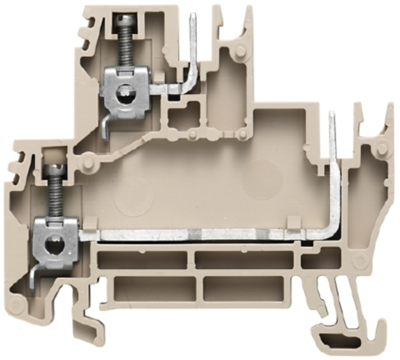

Double-tier terminal, 1038500000, Weidmüller
Double-tier terminal block, screw connection, 2.5 mm², 400 V, 18.5 A, number of levels: 2, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Mehrstock-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 5 kV | |
| Breite | 7.62 mm | |
| Farbe | dunkelbeige | |
| Höhe | 58 mm | |
| Länge | 52.5 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 18.5 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
