1143010000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 20 A, 8 kV, dark beige, 1143010000
Unit Price (€ / pc.)
8.2943 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

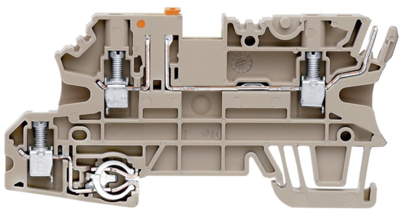

Test-disconnect terminal, 1143010000, Weidmüller
Disconnect and test-disconnect terminal block, screw connection, 2.5 mm², 250 V, 20 A, swiveling, cross disconnection: none, TS 35, dark beige
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Connection | Schraubanschluss | |
| Number of terminals | 2 | |
| Version | Trenn-/Messtrenn Reihenklemme | |
| AWG cross-section | AWG 26 bis 12 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 8 kV | |
| Width | 5.08 mm | |
| Colour | dunkelbeige | |
| Height | 90 mm | |
| Length | 44.5 mm | |
| Cable cross-section | 0,5-4,0 mm² | |
| Rated current | 20 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
