1173780000 | Weidmüller
Patch distribution terminal, push-in connection, 0.5-1.5 mm², 32 pole, 8 A, 4 kV, black, 1173780000
Unit Price (€ / pc.)
24.1332 € *
Available: 10 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
24.13 € *
Price list
Quantity
Price per unit*
1 pcs.
24.1332 €
10 pcs.
22.1935 €
25 pcs.
20.4204 €
50 pcs.
18.5878 €
*incl. VAT plus shipping costs
**Subject to prior sale

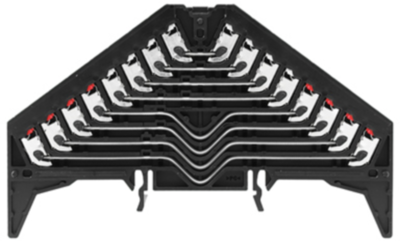

Shunt distributor terminal, 1173780000, Weidmüller
Junction distribution terminal, PUSH IN, 1.5, 250 V, 8 A, number of connections: 32, TS 35 x 15, black, color of actuating elements: white-red
Multi-level terminal block for the realization of space-saving connections.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 32 | |
| Ausführung | Rangierverteilerklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 16 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 9.2 mm | |
| Farbe | schwarz | |
| Höhe | 120 mm | |
| Länge | 73 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennstrom | 8 A | |
| Polzahl | 32-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
