1173870000 | Weidmüller
Potential distribution terminal, push-in connection, 0.5-1.5 mm², 8 pole, 17.5 A, 4 kV, gray, 1173870000
Unit Price (€ / pc.)
19.3375 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: 1 Week **

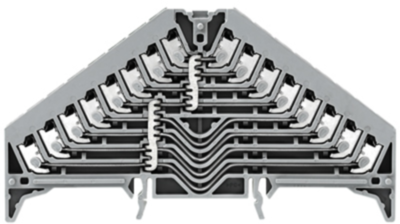

Potential distributor terminal, 1173870000, Weidmüller
Potential distribution terminal, PUSH IN, 1.5, 250 V, 17.5 A, number of connections: 32, number of poles: 8, TS 35 x 7.5, gray
Terminal for potential distribution with a high contact density.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Potentialverteilerklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 16 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 9.2 mm | |
| Farbe | grau | |
| Höhe | 120 mm | |
| Länge | 65.5 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennstrom | 17.5 A | |
| Polzahl | 8-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
