1267800000 | Weidmüller

Patch distribution terminal, push-in connection, 0.5-1.5 mm², 64 pole, 6 A, 4 kV, blue, 1267800000

Order No.: 50P9842
EAN: 4032248112722
MPN:
1267800000
PRV 16 BL 35X15 WS/RT
Series: P-Reihe
1267800000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
37.9015 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
37.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
37.9015 €

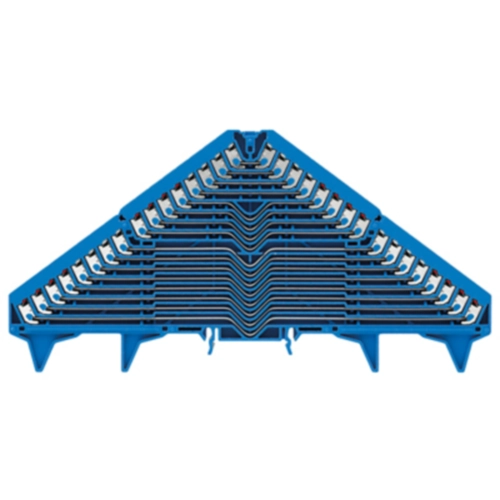

Shunt distributor terminal, 1267800000, Weidmüller

Junction distribution terminal, PUSH IN, 1.5, 250 V, 6 A, number of connections: 64, TS 35 x 15, blue, color of actuating elements: white-red

Multi-level terminal block for the realization of space-saving connections.

Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 64
Ausführung Rangierverteilerklemme
AWG-Leiterquerschnitt AWG 24 bis 16
Bemessungsspannung 250 V
Bemessungsstoßspannung 4 kV
Breite 9.2 mm
Farbe blau
Höhe 225 mm
Länge 113.5 mm
Leiterquerschnitt 0,5-1,5 mm²
Nennstrom 6 A
Polzahl 64-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland RO
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
