1303360000 | Weidmüller
Protective conductor terminal, screw connection, 0.5-2.5 mm², 2 pole, 32 A, 4 kV, yellow/green, 1303360000
Unit Price (€ / pc.)
3.8556 € *
Available: 0 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **

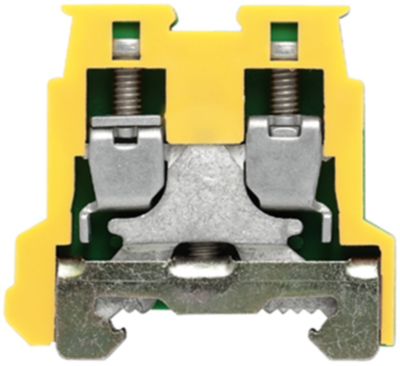

Protective conductor terminal block, 1303360000, Weidmüller
Protective conductor terminal block, screw connection, 2.5 mm², 250 V, number of connections: 2, number of levels: 1, yellow, green
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 5.1 mm | |
| Farbe | gelb/grün | |
| Höhe | 26 mm | |
| Länge | 28 mm | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
