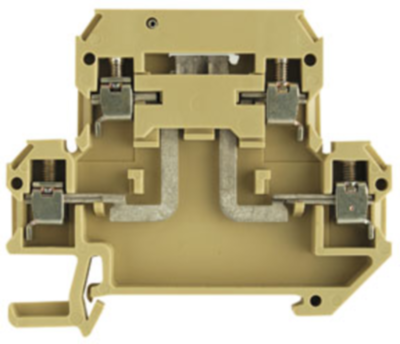

1304960000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 10 A, 6 kV, beige/yellow, 1304960000
Unit Price (€ / pc.)
24.3236 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Test-disconnect terminal, 1304960000, Weidmüller
Disconnect and test-disconnect terminal block, screw connection, 4 mm², 400 V, 10 A, swiveling, cross disconnection: none, TS 35, beige/yellow.
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Connection | screw connection | |
| Version | disconnect/test-disconnect terminal block | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 6 mm | |
| Colour | beige/yellow | |
| Height | 65 mm | |
| Length | 56.5 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated current | 10 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
