1323660000 | Weidmüller

Through terminal block, screw connection, 0.5-4.0 mm², 2 pole, 32 A, 8 kV, orange, 1323660000

Order No.: 51P1273
EAN: 4008190129293
MPN:
1323660000
SAK 4/35 OR
Series: SAK-Reihe
Weidmüller
1323660000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
6.069 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
6.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.069 €

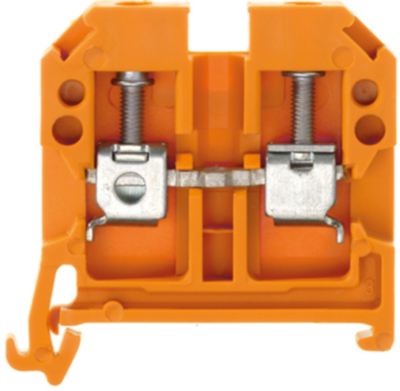

Feed-through terminal, 1323660000, Weidmüller

Feed-through terminal block, screw connection, 4 mm², 800 V, 32 A, number of connections: 2, TS 35, orange

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Connection screw connection
Number of terminals 2
Version through terminal block
AWG cross-section AWG 26 to 10
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 6.5 mm
Colour orange
Height 45 mm
Length 44 mm
Cable cross-section 0.5-4.0 mm²
Rated current 32 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin RO
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
