1404520000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 0.5-10 mm², 27 A, 6 kV, yellow, 1404520000
Unit Price (€ / pc.)
17.255 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

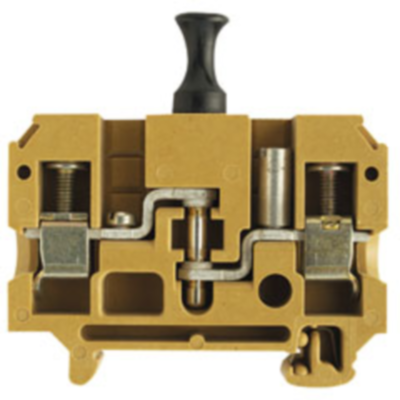

Test-disconnect terminal, 1404520000, Weidmüller
Disconnect and test-disconnect terminal block, screw connection, 10 mm², 500 V, 27 A, pluggable, cross disconnection: none, integrated test socket: yes, TS 35, medium yellow.
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trenn-/Messtrenn Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 10 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 12 mm | |
| Farbe | gelb | |
| Höhe | 65 mm | |
| Länge | 48.5 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 27 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
