1521680000 | Weidmüller

Protective conductor terminal, push-in connection, 0.5-2.5 mm², 2 pole, 8 kV, yellow/green, 1521680000

Order No.: 51P5871
EAN: 4050118328189
MPN:
1521680000
A2C 2.5 PE
Series: A-Reihe
Weidmüller
1521680000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.8913 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8913 €
10 pcs.
3.5700 €
50 pcs.
3.2487 €
100 pcs.
2.9274 €
*incl. VAT plus shipping costs
**Subject to prior sale

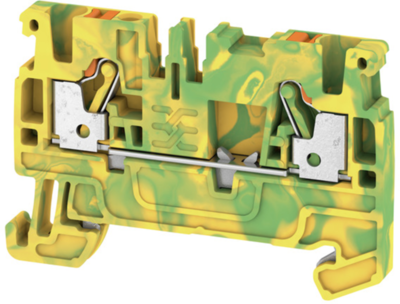

Protective conductor terminal block, 1521680000, Weidmüller

Protective conductor terminal block, PUSH IN, 2.5 mm², 800 V, number of connections: 2, number of levels: 1, green / yellow, orange

Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Connection push-in connection
Number of terminals 2
Version protective conductor terminal
AWG cross-section AWG 28 to 12
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 5.1 mm
Colour yellow/green
Height 36.5 mm
Length 55 mm
Cable cross-section 0.5-2.5 mm²
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
