1521870000 | Weidmüller

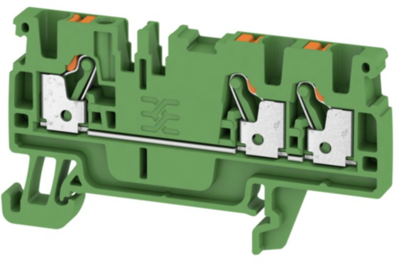

Through terminal block, push-in connection, 0.5-2.5 mm², 3 pole, 24 A, 8 kV, green, 1521870000
Unit Price (€ / pc.)
1.4161 € *
Available: 0 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.2852 €
50 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 1521870000, Weidmüller
Feed-through terminal block, PUSH IN, 2.5 mm², 800 V, 24 A, number of connections: 3, TS 35, green
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.1 mm | |
| Farbe | grün | |
| Höhe | 66.5 mm | |
| Länge | 36.5 mm | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
