1552780000 | Weidmüller

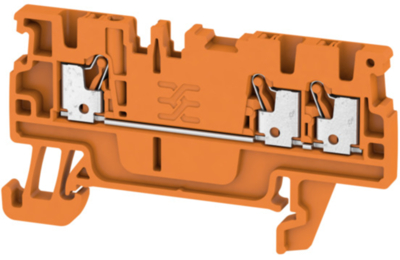

Through terminal block, push-in connection, 0.5-1.5 mm², 3 pole, 17.5 A, 6 kV, orange, 1552780000
Unit Price (€ / pc.)
1.2376 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1305 €
50 pcs.
1.0353 €
100 pcs.
0.9282 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 1552780000, Weidmüller
Feed-through modular terminal block, PUSH IN, 1.5 mm², 500 V, 17.5 A, number of connections: 3, TS 35, orange
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 3 | |
| Version | through terminal block | |
| AWG cross-section | AWG 26 to 14 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 3.5 mm | |
| Colour | orange | |
| Height | 61.5 mm | |
| Length | 33.5 mm | |
| Cable cross-section | 0.5-1.5 mm² | |
| Rated current | 17.5 A | |
| Pin number | 3 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
