1598090000 | Weidmüller
Through terminal block, screw connection, 1.5-16 mm², 2 pole, 57 A, 8 kV, white, 1598090000
Unit Price (€ / pc.)
12.1261 € *
Available: 0 pcs.
Available in 6 Days: 125 pcs.
Leadtime: On Request **

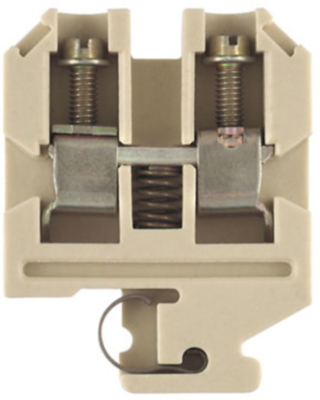

Feed-through terminal, 1598090000, Weidmüller
Feed-through terminal block, screw connection, 10 mm², 800 V, 57 A, number of connections: 2, TS 32, white
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 14 to 6 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 11.5 mm | |
| Colour | white | |
| Height | 40 mm | |
| Length | 53 mm | |
| Cable cross-section | 1.5-16 mm² | |
| Rated current | 57 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
